A basic clamp assembly consists of a weld plate, two (2) identical clamp halves, a cover plate and two (2) hex head bolts. Standard weld plates and cover plates are furnished in plain carbon steel or zinc plated finish. Stainless Steel hardware is available upon request (type 304 & 316 stainless). Engineering, plant and maintenance personnel appreciate the simplicity, vibration dampening, shock and noise absorbing qualities of this system, which comply with OSHA, nuclear, environmental, ASTM, and Coast Guard standards. Clamping halves are available in Polypropylene (PP) or Santoprene (SA). Both plastic materials are resistant to salt water and most chemicals and oil and offer a wide range of thermal properties. Aluminum clamp halves are also available from stock.

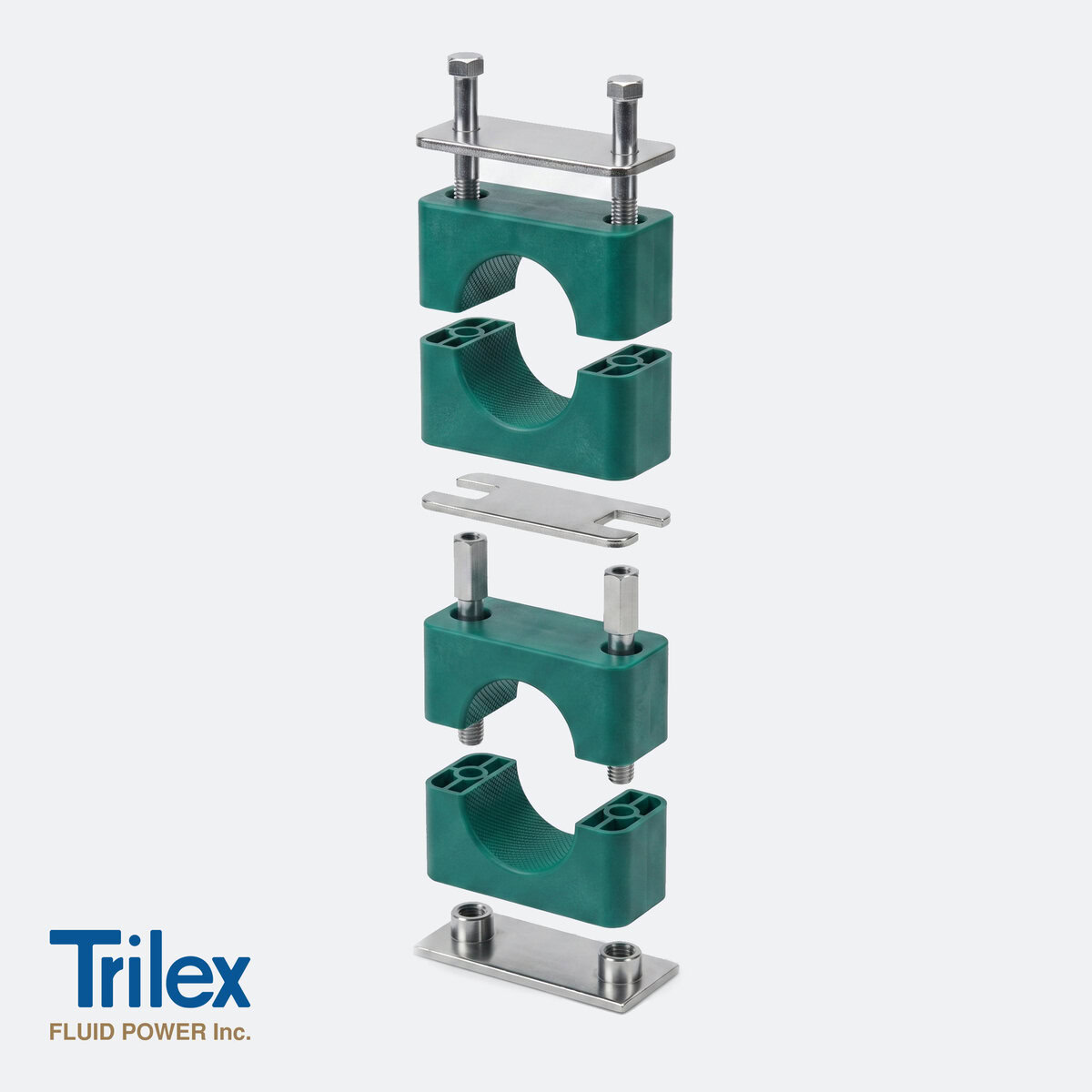

Standard Series Pipe & Tube Clamp Stacking
Standard Series clamps will accommodate pipes, tubes and hoses ranging in size from ¼” OD to 3½” OD. Clamps for tube and metric sizes, other than those listed, can be furnished upon request.
