A basic clamp assembly consists of: a weld plate, two (2) identical clamp halves, a cover plate and two (2) hex head bolts. Weld and cover plates are made from low carbon steel material. Stainless steel and plated hardware available for all groups. Clamp halves are made of Polypropylene (PP) green or black colour, Santoprene (SP) tan colour, and Aluminum (AL) silver colour. Heavy series clamps of the same group may be stacked vertically to desired number by using stacking bolts (HSB) and safety plates (HSP).

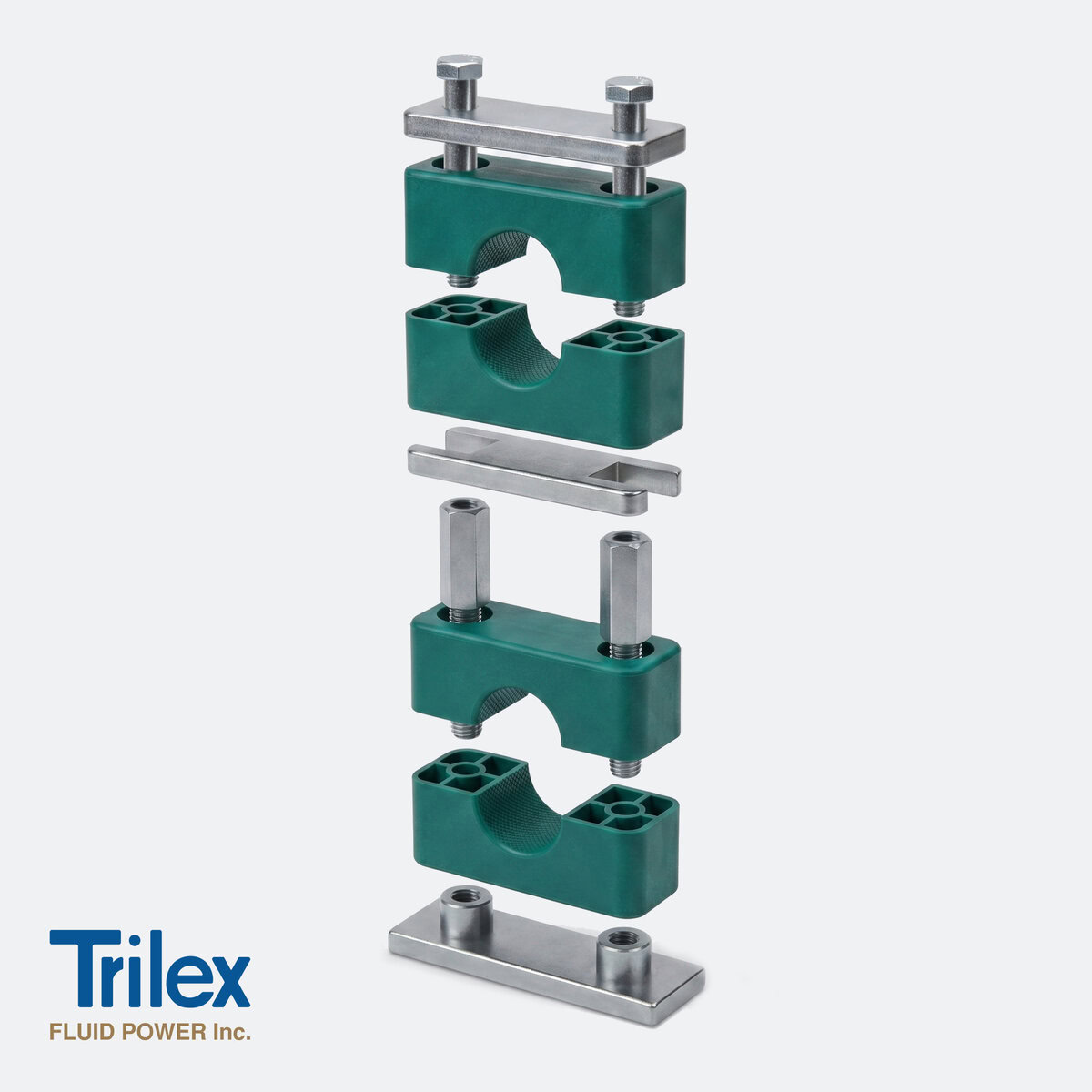

Heavy Series Pipe & Tube Clamp Stacking
Heavy Series Clamps are available in a single heavy (SH) unit two (2) bolt design, or a double heavy (DH) unit four (4) bolt design. Clamps are designed to absorb shock and vibration and reduce noise from installations, such as: steel mills, power plants, ship building, off-highway equipment, off-shore drilling platforms, high pressure hydraulic machinery, etc. Heavy series clamps will accommodate pipes, tubes and hoses ranging in size from ¼” to 8⅝” O.D. Metric sizes available upon request.
