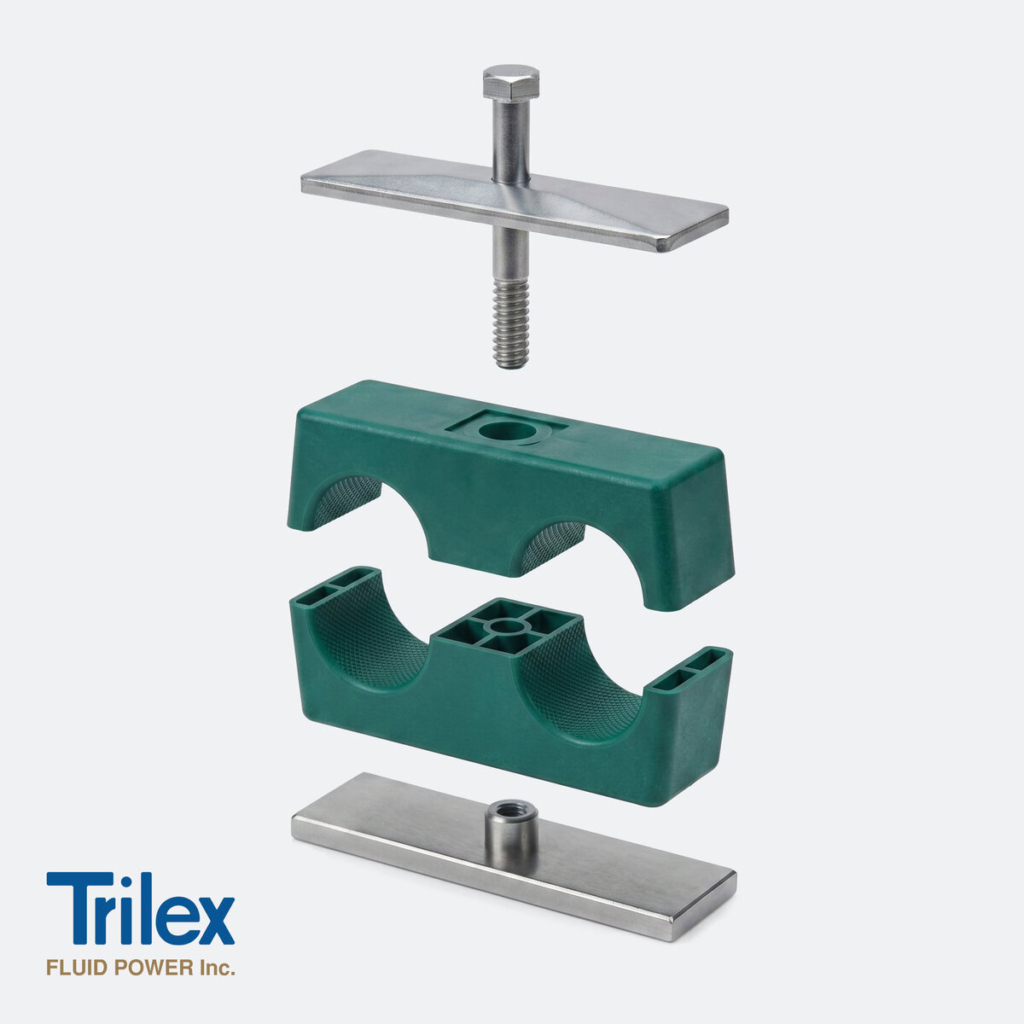

A basic clamp assembly consists of a weld plate, two (2) identical clamp halves, an arched cover plate and one (1) hex bolt. Twin weld and cover plates are furnished in plain carbon steel or zinc plated finish. Zinc plated will be furnished as the norm. Group T1 is supplied with 1/4-20 hardware. Group T2 – T5 can be supplied with either 5/16-18 or 3/8-16 hardware. 5/16-18 hardware will be supplied as the norm. Clamp units for lines with two different diameters can be provided upon request.
Twin Series Pipe & Tube Clamp Complete Set
Twin Series Clamps will accommodate pipes, tubes and hoses ranging in size from ¼” to 1⅝” O.D. In addition to shock and vibration absorbtion properties, the Twin Clamp can support multiple tubes or hose and provide a close center distance. Typical installations: Off-highway equipment, agricultural equipment, material handling, construction, food processing plants, etc. Clamps for tube and metric sizes, other than those listed, can be furnished upon request.
